ST9-W

  • Bestand: 0
  • Category: ST9 Serie
$0 $24

Robustes Tablet für Logistik, Industrie und andere Szenarien: Ausgestattet mit Windows 10 und einem Quad-Core-Prozessor, verfügt es über einen Bildschirm mit hoher Helligkeit, unterstützt Multimode-Kommunikation und verfügt über praktische Funktionen; bietet IP65-Schutz und breite Temperaturanpassungsfähigkeit mit erweiterbaren Funktionen, was es zu einem langlebigen Werkzeug für industrielle Umgebungen macht.

Jetzt kaufen Zum Warenkorb hinzufügen
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

Produktübersicht

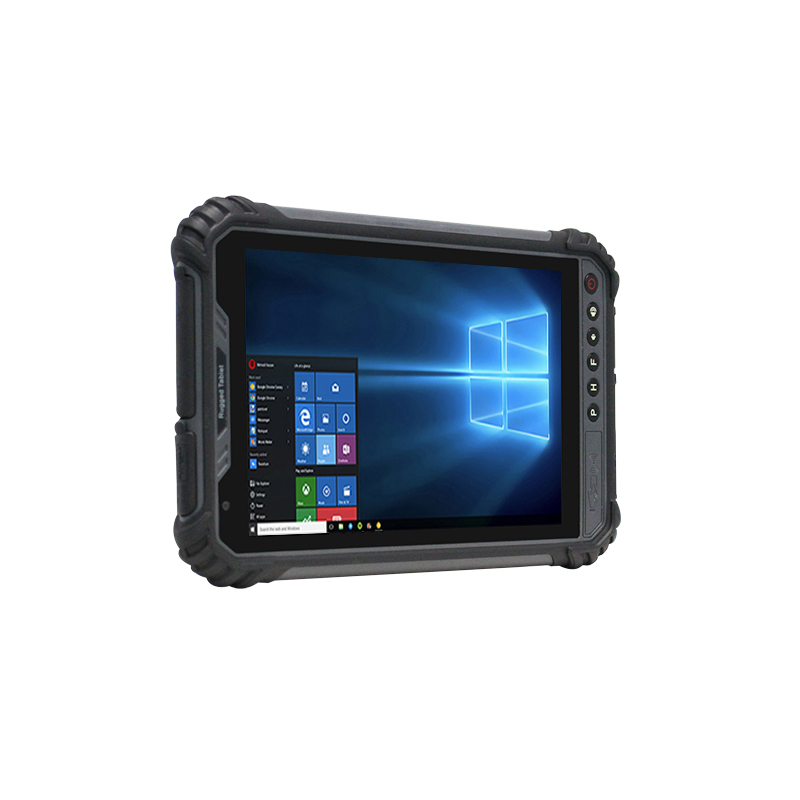

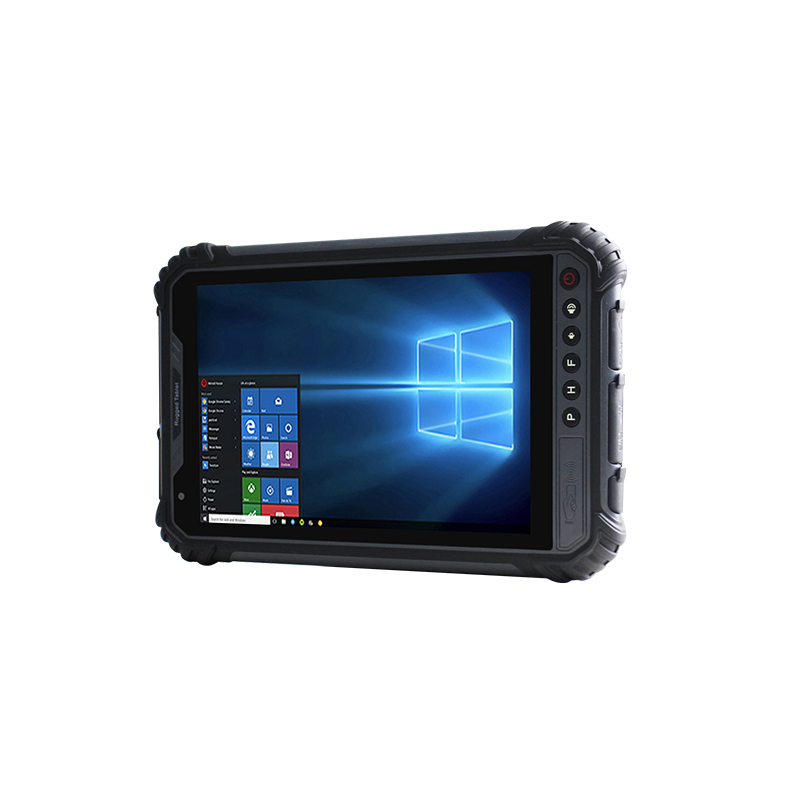

Das ST9-W ist ein 8-Zoll robustes Tablet, das von einem Intel Cherry Trail Z8350 Quad-Core-Prozessor (Turbo-Boost bis 1,92 GHz) angetrieben wird und das Windows 10 Pro-System läuft (Home/IoT Edition optional). Es verfügt über 8GB/64GB Speicher, ein 8-Zoll-IPS-Display mit 1200×1920 Pixeln (max. 400 Nits), eine 2 MP Front- und 5 MP Rückkamera, einen 7800 mAh Akku (7,5 Stunden Videowiedergabe), 4G LTE-Konnektivität, WiFi 5 und Bluetooth 4,2. Mit HDMI-Ausgang, zahlreichen USB-Schnittstellen und IP65-Schutz bietet es zuverlässige Leistung für Windows-basierte industrielle und unternehmensinterne Feldanwendungen.

Hauptmerkmale

  • Windows 10 Pro (Home/IoT Edition optional) mit Intel Cherry Trail Z8350 (1,44 GHz, Turbo-Boost 1,92 GHz)
  • Intel HD Graphics 400, 8-Zoll-IPS-Display mit 1200×1920 Pixeln (max. 400 Nits)
  • 4GB/64GB Speicher, 7800 mAh Akku mit 7,5 Stunden Videowiedergabe
  • 2 MP Front- + 5 MP Rückkamera, Unterstützung für Stylus und Touch mit nassen Händen
  • 4G LTE (SLM770A-Modul), Intel Stone Peak 3165 WiFi/Bluetooth 2-in-1-Modul
  • IP65-Staub- und Wasserschutz, Sturzschutz bis 1,2 m Höhe (zertifiziert nach MIL-STD-810G)
  • Vielzahl von Schnittstellen: HDMI, USB 3.0×2, USB 2.0×1, RS232, Pogopin-Erweiterung
  • Optional: UHF RFID (M-500/M-301), 1D/2D-Barcode, Fingerabdruckerkennung und hochpräzises GPS

Technische Spezifikationen (ST9-W)

Betriebssystem Windows 10 Pro (Windows 10 Home/IoT Edition optional)
CPU Intel Cherry Trail Z8350 (Quad-Core, Quad-Thread; 1,44 GHz) - Turbo-Boost bis 1,92 GHz
GPU Intel HD Graphics 400
RAM/ROM 4GB/64GB
LCD 8 Zoll IPS-Display, 1200×1920 Pixel; 400 Nits (MAX)
Touchscreen 10-Punkt-Touch, Stylus-Unterstützung, Touch-Unterstützung mit nassen Händen
Kamera Front: 2 MP; Rückseite: 5 MP
Stromversorgung und Akku 7800 mAh; 3,8 V; Ladezeit: 3 h 30 min; Nutzungsdauer: 7 h 30 min (50 % Lautstärke, 60 % Helligkeit, Abspielung lokaler 1080P-Videos)
WWAN TDD-LTE: B40; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28; WCDMA: B1/B2/B4/B5/B8; GSM: B2/B3/B5/B8
Modul: SLM770A (EC25-AUX in Nordamerika)
GPS BDS (Beidou), GPS, GLONASS (optional hochpräzises GPS: UM960)
WLAN 802.11a/b/g/n/ac (2,4G/5G), Wireless AP (Mobile AP); Modul: Intel Stone Peak 3165 (WiFi/Bluetooth 2-in-1)
BLUETOOTH Version 4,2
NFC 13,56 MHz, Abstand: 1-3 cm; ISO14443 TYP A
Sensor Lichtsensor, Beschleunigungssensor, G-Sensor
Abmessungen 236×144×17,4 mm
Gewicht 670±20 g

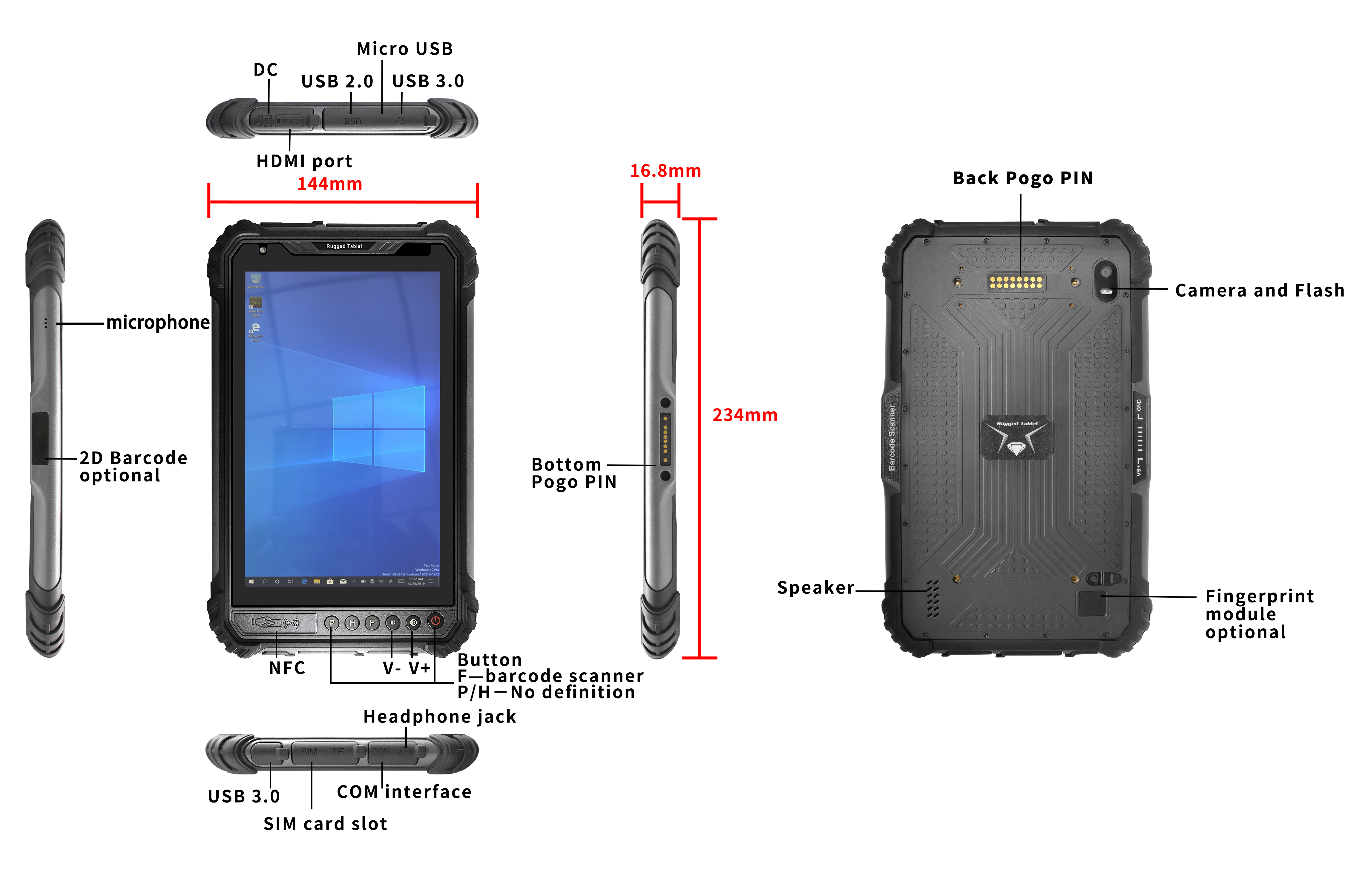

Eingangs-/Ausgangsschnittstellen HDMI×1, SIM-Kartenslot×1, RS232×1 (Mini-USB), Kopfhöreranschluss×1, DC×1 (3,5×15 mm), USB-A: USB 3.0 ×2 + USB 2.0×1
Pogopin unten: USB 2.0; Aufladen; RS232
Pogopin hinten: USB 2.0; RS232
1D/2D-Barcode Optional: NLS-N1 / M1 / SE2707
UHF RFID M-500 optional: US (902-928 MHz, 3-5 m) / EU (865-868 MHz, 3-5 m)
M-301 optional: US (902-928 MHz, 5-8 m) / EU (865-868 MHz, 5-8 m)
Fingerabdruck Optional: ZAZ-0A0 / 1020A
Schutzklasse IP65 Staub- und Wasserschutz, Sturzschutz bis 1,2 m Höhe
Zertifizierungen MIL-STD-810G, CE, FCC, 3C
Temperaturbereich Lagerung: -40°C bis 60°C; Betrieb: -20°C bis 55°C

Anwendungsbereiche

?️
Windows-Industriesteuerung
?
Felddatenverarbeitung
?
Hochpräzises GPS-Navigation
?
Unternehmens-Feldservice
